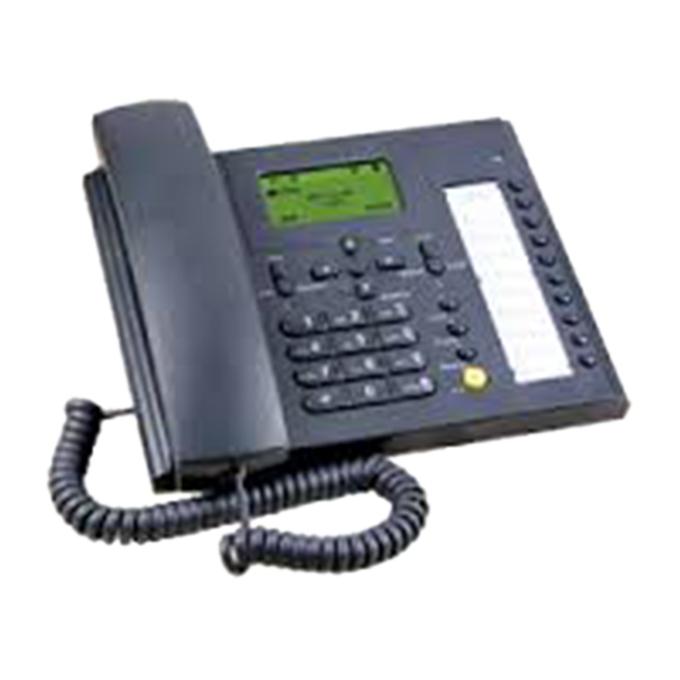

US102-YN Universal IP Phone Set - Black

About US102-YN Universal IP Phone Set

Basic models of Escene IP phones are equipped with complete set of functions which is necessary for voice communications. Universal phones of the US series are ideally suited for small enterprises and home offices. They are available at the price, are reliable and simple in use.

Functionality

• Support of a sound of a high definition of Voice HD (G.722 codec).
• Direct connection on SIP to Virtual IP automatic telephone exchanges (for example Broadworks, MFI RTU) and to office IP automatic telephone exchanges (for example Asterisk, 3CX IP PBX).
• Two ports Ethernet (PC/LAN) with support by VLAN and an opportunity to work in the mode of switching or routing.
• Simplicity of installation and operation, possibility of expanded setup (including the SIP and DVO functions) through the screen menu or via the web interface.
• Full-duplex public address system, number determinant, deduction of a challenge, transfer and readdressing of a challenge, and also and other additional functions.
• Support of enciphering by means of the VPN tunnel or enciphering of signal SIPS and media of SRTP of a traffic.
• Support of a corporate notebook under the LDAP or XML protocol or a personal address book.
• The Russified screen menu and the web interface of phone.

Technical characteristics

• RFC 3261 standards SIP server, Asterisk, Broadsoft, MOUTH of MFI, 3CX IP PBX, Panasonic SIP-ATC and others.
• Enciphering of SIPS and SRTP.
• Audio codecs: G.711 u/a, G.722(HD Voice), G.729a, G.723.
• QoS: TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms).
• Support of DNS SRV.
• Two SIP accounts with a possibility of registration on two independent SIP servers and a possibility of automatic switching in case of registration loss.
